Article image KOB101TI

Comitronic-BTI KOB101TI

KIT COMPLET CDE BIMANUELLE

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

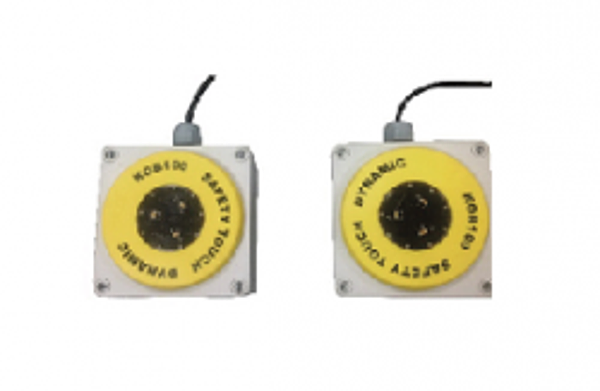

Two-hand dual-technology touch control button for enhanced security. Dynamic detection of approaching hand even wearing gloves. Fraud reduction system and MSD reduction. Capacitive and optical technology touch button

Technical parameters

Performance level with COM3C controller: PL = e Safety category with COM3C IIIC (EN 574), 4 (ISO 13849-1) 'Failsafe' level with COM3C SIL 3 Time before dangerous failure MTTFd = 100 years Activation distance on touch (0 force = MSD reduction) Safety contacts 1 x PNP NO/50mA OSSD and 1 x PNP NF/50mA OSSD Diagnostics fraud, simultaneity, short-circuiting of contacts with multi-function illuminated ring Reset automatic with two buttons correctly activated Attachment Attachment 51mm bore and 2 to 6 invisible D3 screws (not included) Mounting position 1 Material TR90UV yellow Electrical connection 6-way screwless push terminal 1.5mm² Water resistance IP 67 with silicone seal on the trim Temperature -25°C to +60°C Marking screen printed + serial no. for traceability Recommendations use gloves in accordance with EN 388

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
