Product
Comitronic-BTI
GACHET2
Request a Quote
Image copyright: Comitronic-BTI

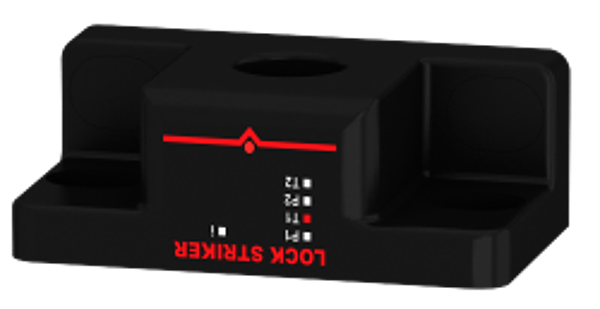

Comitronic-BTI GACHET2
Striker
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Contactless safety interlocking with encoded striker for "casing / heavy door". Contactless "door lock" encoded detection. Contactless "door open / closed" detection. Unlock command with just one contact during serialization of products. Emergency evacuation handle
Technical parameters
| Level of performance with AWAX controller: | up to PL = e Safety category with an external controller up to 4 Cycle before dangerous failure B10d = 1,000,000 Bolt travel 14 mm Bolt diameter 24 mm (beveled for "under-voltage" closed position or "lock" mode) S hearing strength 2000 N Gap between strike and lock 2 to 4 mm (adjustable when assembling, recommended to 4 mm) Maximum lateral offset between strike and lock +/- 2.5 mm Maximum angular displacement between strike and lock +/- 5° Safety locking contacts 2 x NO 2A/50V Safety door contacts 2 x PNP/500 mA Unlock command PLC-compatible (12~30 VDC/2~5 mA) F ault Diagnosis bolt stuck, power out of specification, temperature out of specification, electromagnet failure, serialization failure Reset on command "SMART consumption" for minimal power consumption when connected in series Auxiliary release female triangle key 8 mm x 14.2 mm (optional) Attachment 4 M6 screws (screw covers supplied, screws not included) Mounting position 2 (door pulling, door pushing) Material PA6 fiberglass reinforced Electrical co |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
