Product
Comitronic-BTI
EPINUS2KNT/MKTS
Request a Quote
Image copyright: Comitronic-BTI

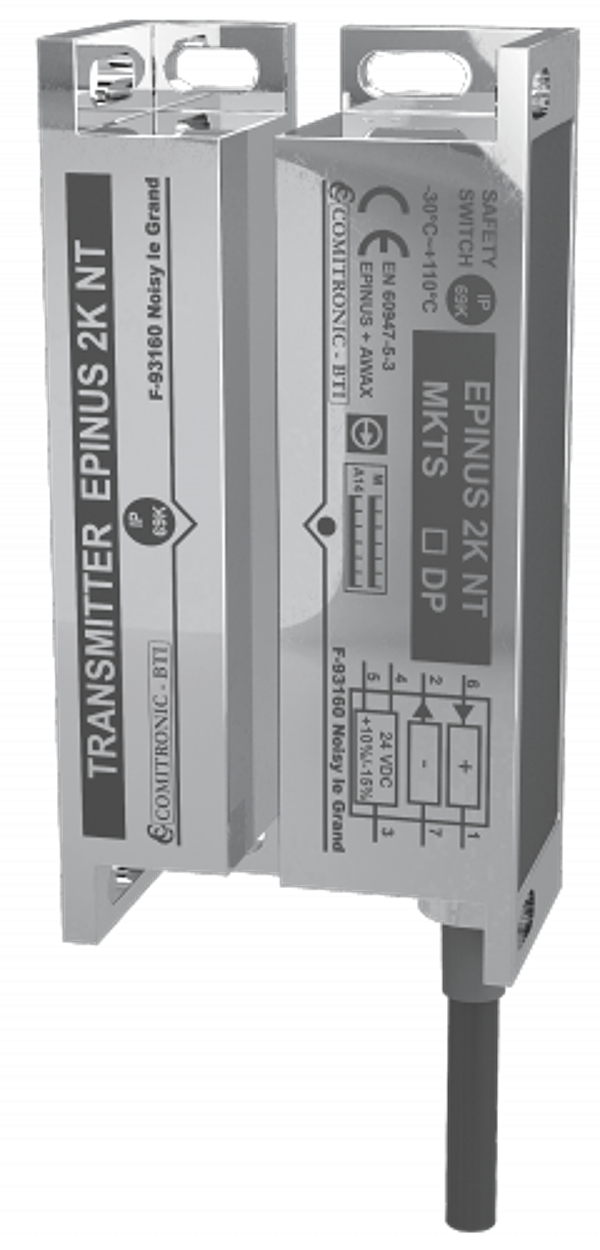

Comitronic-BTI EPINUS2KNT/MKTS
Position control for doors / casings on dangerous machinery with magnetic holding devices
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| 20 N integrated handle magnetic door holding High temperature and silicone cable Contactless coded electronic sensor Level of performance with AWAX controller: | up to PL = e Safety category up to 4 with an AWAX controller Time before dangerous failure MTTFd = 100 years Max. activation distance 3 mm, 1 mm hysteresis Holding Force transmitter + receiver in contact = 20N Safety contacts/diagnostics 2 x NO 0.8A/24V redundant and 1 x PNP 250mA Detection encoding mono-code inviolable Reset automatic Housing mount 4 tamper-proof M4 screws (optional ref BH4) Handle assembly M8 screw (optional handle) Mounting position 2 (double wall brackets) Material INOX 316L mirror polished Electrical connection 50cm Ultra-soft silicone cord with M12 connector. Water resistance IP 69K Extreme temperature -40°C to +125°C Marking laser engraving with mechanical punching of the serial number for permanent traceability |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
