Product
Comitronic-BTI
C4CK
Request a Quote
Image copyright: Comitronic-BTI

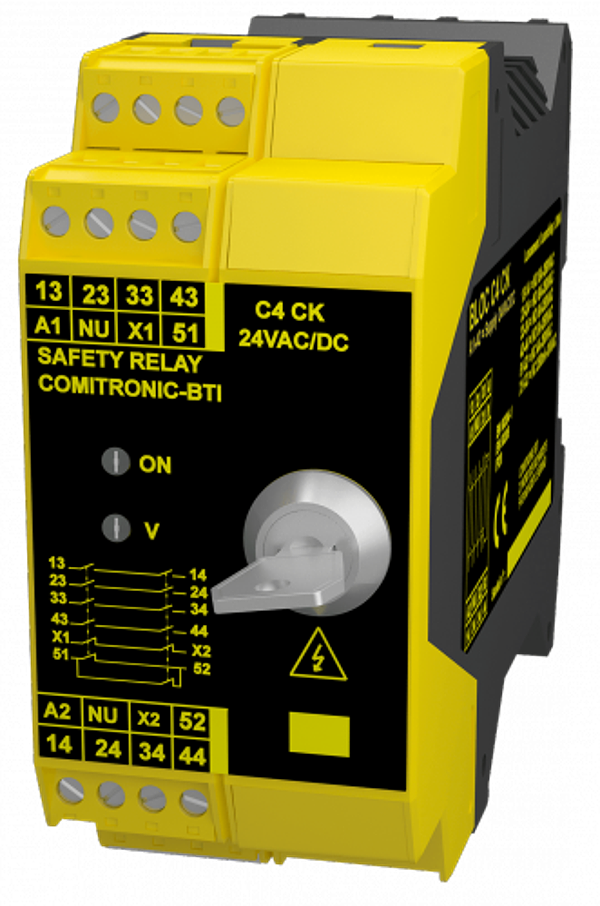

Comitronic-BTI C4CK
Electric area locking
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Compact 45 mm format Two position key switch: | free and captive Removable terminals Level of performance PL = e Safety category 4 Safety Integrity Level SIL 3 Cycle before dangerous failure B10d=100,000 at 5A Risk duration 20 ms max. Cable severing protection yes (opening of safety lines) Safety contacts/diagnostics 4x NO 8A/250V redundant / 1x NF redundant in series (test) and 8A/250V parallel (information) Indicators 2 LEDs Reset automatic Mounting symmetrical DIN 35mm rail on DIN 50022 Mounting IP 54 electrical box Electrical connection Maximum 14 AWG (2.08 mm²) / 250V minimum Temperature -20°C to +60°C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
