Product
Comitronic-BTI
AWAX28XXL
Request a Quote
Image copyright: Comitronic-BTI

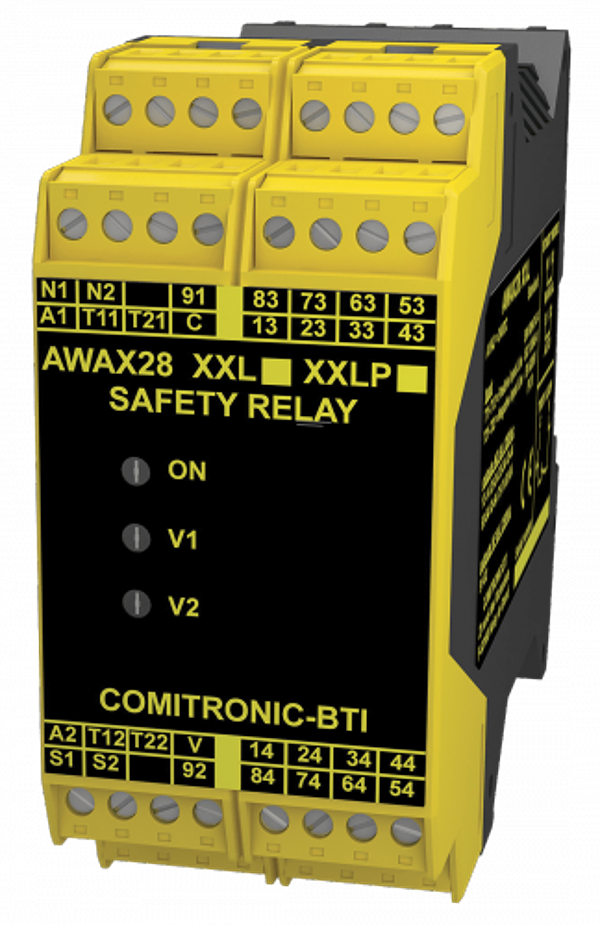

Comitronic-BTI AWAX28XXL
Sensor controller on Acotom process / mechanical switches / emergency stops
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Safety management on 9 outputs in a compact 45mm housing Short-circuit detection in 2 µs, self-resetting Removable terminals Performance level with AWAX controller: | PL = e Safety category 4 Safety Integrity Level SIL 3 Time before dangerous failure MTTFd = 75 years Cycle before dangerous failure B10d=100,000 at 5A Risk duration 20 ms max. Cable severing protection yes (opening of safety lines) Short-circuit and overload protection yes, using DLC (opening of safety lines and current limiting in contacts) Reaction 2 µs ultrafast Safety contacts/diagnostics 3x NO 8A/250V redundant / 1x NF 8A/250V redundant in serial (XXL version) or parallel (XXLP version) Indicators 3 LEDs for diagnostics Reset configurable by dip-switch (SR=Automatic, N=manual) Mounting symmetrical DIN 35mm rail on DIN 50022 Mounting IP 54 electrical box Electrical connection Maximum 14 AWG (2.08 mm²) / 250V minimum Temperature -20°C to +60°C Certification TÜV Rheinland 01/205/5168/11 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
