Comitronic-BTI
ANATOM78S
Request a Quote
Image copyright: Comitronic-BTI

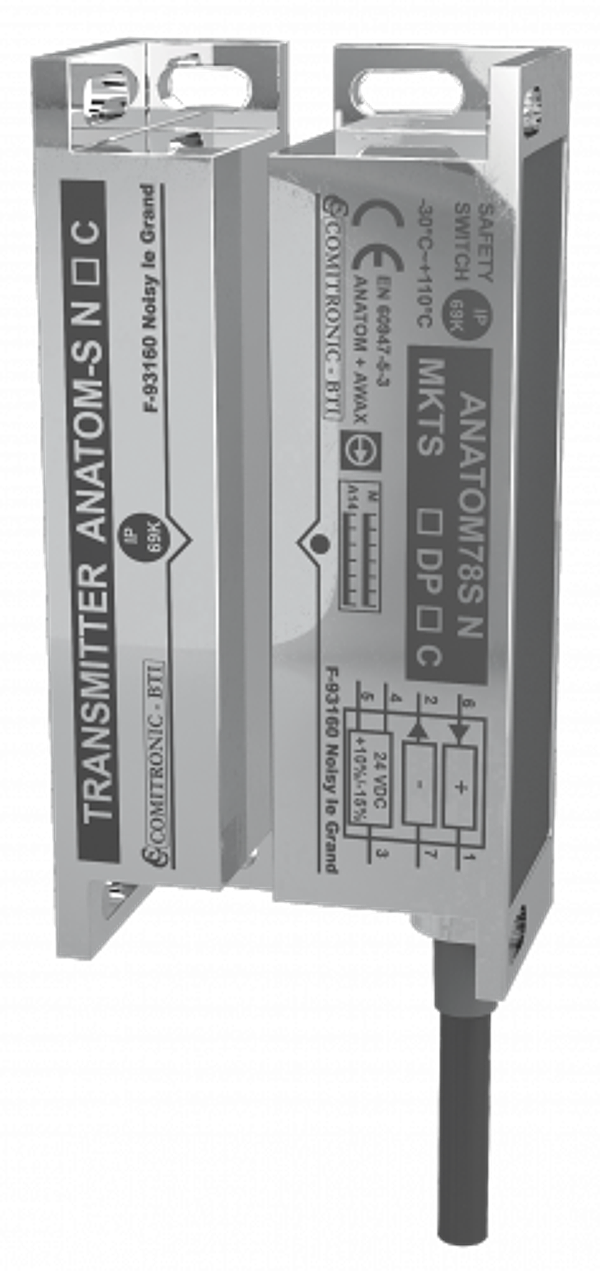

Comitronic-BTI ANATOM78S
Position control for doors / casings on hazardous machinery. Contactless coded electronic sensor. Total safety management with an AWAX controller. Low cost solution for multi-access applications. Level of performance with AWAX controller: up to PL = e. Safety category: up to 4 with an AWAX controller. High temperature : -40 °C à +125 °C
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Time before dangerous failure: | MTTFd = 100 years Max. activation distance 10 mm, 2 mm hysteresis Safety contacts/diagnostics 2 x NO 1A/24V redundant and 1 x 250mA PNP contact Detection encoding mono-code inviolable Reset automatic Attachment 4 tamper-proof M4 screws (optional ref BH4) Mounting position 2 (double wall brackets) Material INOX 316L mirror polished Electrical connection 50cm Ultra-soft silicone cord with M12 connector. Water resistance IP 69K Extreme temperature -40°C to +125°C Protective cover 316L stainless steel mirror polished "ref. + C" option Marking laser engraving with mechanical punching of the serial number for permanent traceability |
| The differences between the products in the ANATOM range: | ANATOM6S ANATOM6S-PLC ANATOM78S ANATOM98S ANATOM78S-485 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
