Bernstein 3918351166

AH-EINR.I/TI/BI KU18

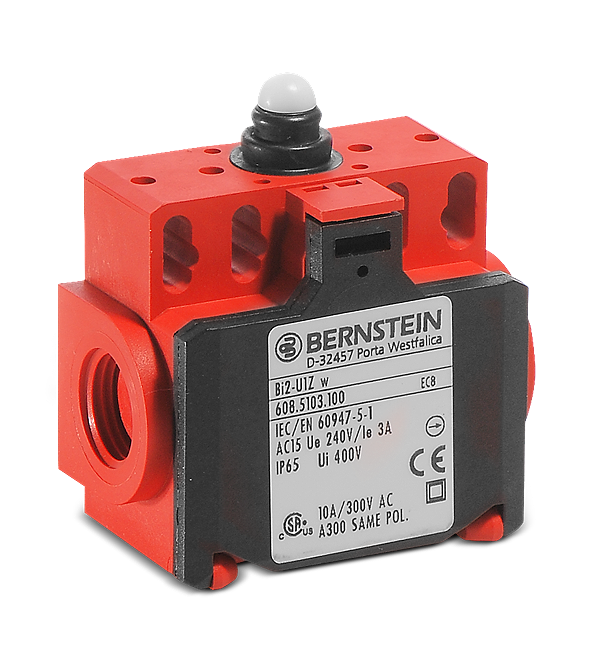

Limit switch Type Bi2. Compact limit switches Type Ti2

Description

Compact switch for safety or control applications in protection class IP 65. Protection class IP 65 to VDE 0470 T1. Enclosure and cover PA 6, self-extinguishing (UL-94 V0). Optimised size while retaining tried-and-tested connection system. Actuator can be repositioned by 4 x 90°. Two-channel safety monitoring possible. With captive snap-on cover. Cable entry 2 x M16 x 1.5. Connection designation conforming to DIN EN 50013. 2 mm contact opening width of slow-action system conforming to EN 81-1 for lift construction. Slow-action and snap-action contacts. Small hysteresis in snap action system. Versions: 1 NC / 1NO, 2 NC. All NC contacts with, in the circuit diagram are positively opening contacts. Versions: 1 NC / 1NO, 2 NC, 2 NO. Type: Zb (galvanically isolated changeover contact)
