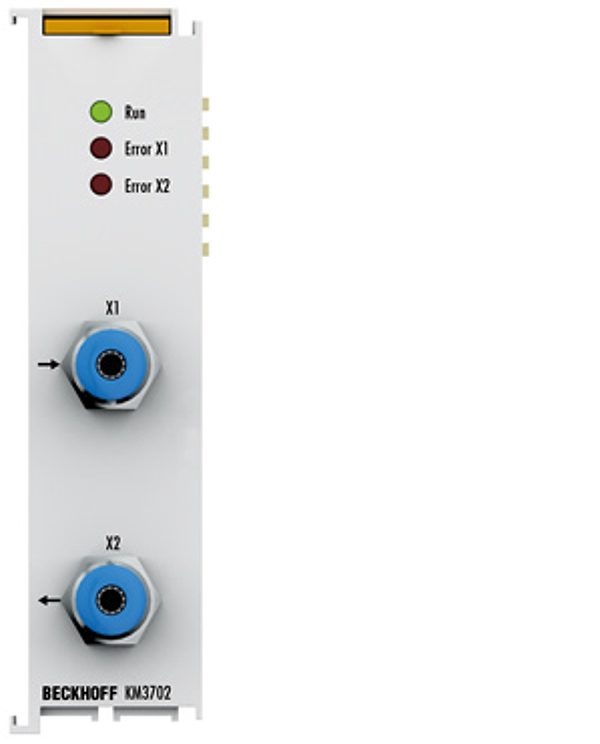

Beckhoff KM3702
KM3702 | 2-channel relative pressure measuring terminal 7,500 hPa (7.5 bar)
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KM3702 pressure measuring terminal enables direct measurement of two pressure values at the hose connections. The pressure is determined as a pressure difference to the ambiance of the KM3702 and is available in the fieldbus as a 16 bit value. The status LEDs indicate proper function or errors such as over-range.
Technical parameters
| Technology: | relative pressure measurement |
| Number of inputs: | 2 |
| Measuring error: | 3 % (relative to full scale value) |
| Measuring range: | 0…7,500 hPa (7.5 bar) |
| Max. overload: | 10,000 hPa (10 bar) |
| Resolution: | 1 hPa (1 mbar) per digit |
| Measuring speed: | 5 ms typ. |
| Current consumption power contacts: | – (no power contacts) |
| Current consumpt. K-bus: | typ. 15 mA |
| Bit width in the process image: | 2 x 3 byte input/output |
| Medium: | non-aggressive gases |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL |
