KM2614
KM2614 | 4-channel relay module 230 V AC, 16 A

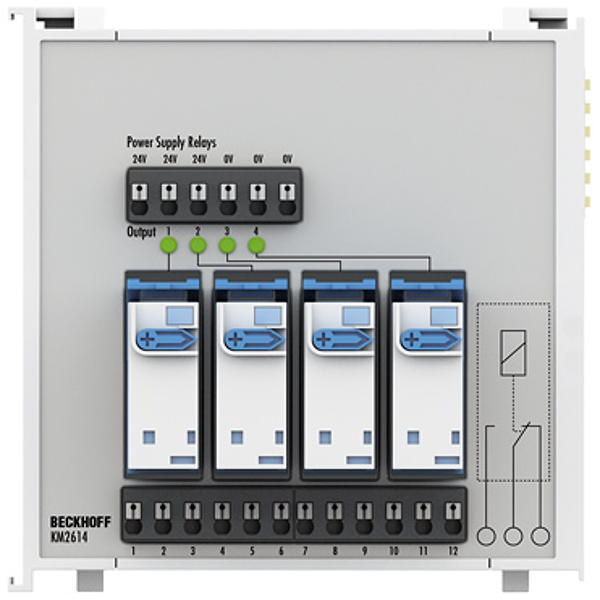

The KM2614 terminal module combines four pluggable power relays in one fieldbus module. The high switching capacity of 16 A at 230 V AC enables direct mains connection of consumers with high current consumption. The relays are positioned at the top and can therefore be exchanged easily. The KM2614 terminal module enables each relay to be manually switched to the ON status. A seal indicates the initial manual operation.
Load type: | ohmic, inductive, lamp load |
Max. output current: | 16 A |
Number of outputs: | 4 x change-over |
Operation: | automatic operation/manual operation at the relay |
Nominal switching voltage: | 250 V AC, 30 V DC |
Nominal switching current: | 16 A |
Electrical isolation: | 1.5 kV (K-bus/field potential); 2.5 kV rated surge voltage, overvoltage category III |
Current consumption power contacts: | – (no power contacts) |
Current consumption K-bus: | typ. 15 mA |
Current consumption 24 V DC: | 50 mA for each active relay |
Bit width in the process image: | 4 outputs |
Switching current: | 16 A AC/12 A DC at 30 V DC |
Operating cycles mech. (min.): | 5 x 106 |
Operating cycles electr. (min.): | 1 x 106 (1 A/250 V AC) |
Lamp test, electronic ballast: | max. 25 A starting current |
Minimum permitted load: | 5 mA (10 V DC) |
Dimensions (W x H x D): | 99 mm x 100 mm x 62 mm |
Configuration: | no address or configuration setting |
Special features: | automatic/manual operation at the relay |
Weight: | approx. 250 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Approvals: | CE |
