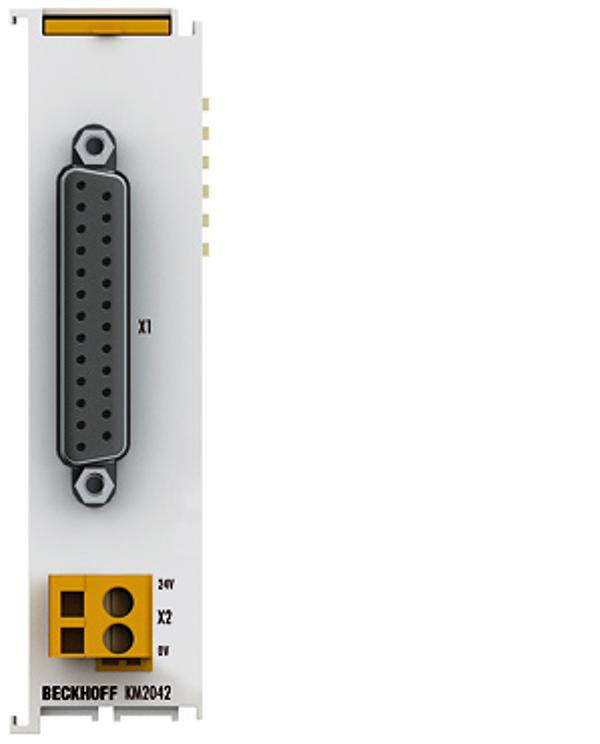

Beckhoff KM2042
KM2042 | 16-channel digital output 24 V, 0.5 A, D-sub connection
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The terminal module KM2042 combines 16 digital outputs in a D-sub plug connector in a compact design with high packing density. It is thus ideally suited for multi-pin connector valve terminals. The binary control signals are transferred (electrically isolated) to the actuators at the process level. Like the standard Bus Terminals, the terminal modules are integrated in the I/O system. Plug X2 included in the scope of supply.
Technical parameters
| Connection technology: | D-sub |
| Number of outputs: | 16 |
| Rated load voltage: | 24 V DC (-15 %/+20 %) |
| Load type: | ohmic, inductive, lamp load |
| Max. output current: | 0.5 A per channel, individually short-circuit-proof, ∑ 4 A |
| Short circuit current: | < 2 A |
| Breaking energy: | < 150 mJ/channel |
| Reverse voltage protection: | yes |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Current consumption power contacts: | – (no power contacts) |
| Current consumption K-bus: | typ. 5 mA |
| Bit width in the process image: | 16 outputs |
| Dimensions (W x H x D): | 26.5 mm x 100 mm x 71 mm |
| Special features: | ideal for multi-pin connector valve terminals |
| Weight: | approx. 90 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE |
