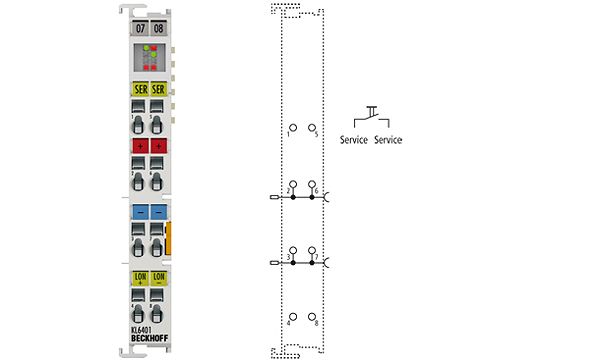

Beckhoff KL6401
KL6401 | LON Bus Terminal
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL6401 LON Bus Terminal enables direct connection of LON devices. The network variables of the connected devices are available for the Bus Coupler or the higher-level bus system. This simplifies the data exchange between a variety of systems and a LON network. Status LEDs directly indicate the bus status. The LON terminal operates independent of the bus system used. Several KL6401 can be used with a single Bus Coupler or a Bus Terminal Controller. The KL6401 supports 62 SNVTs. All SNVT types can be configured as input or output variable via the KS2000 software. The KS2000 software generates an XIF file that is integrated in an LON tool.
Technical parameters
| Technology: | LON |
| Number of channels: | 1 |
| Data transfer standard: | FTT-10, LPT |
| Data transfer channels: | 1 |
| Network variables: | 62 (standard network variables SNVTs), max. 15 LON devices |
| Data transfer rates: | 78 kbit/s |
| Bus segment length: | 500 m |
| Bus access: | CSMA |
| Current consumpt. K-bus: | typ. 55 mA |
| Current consumption power contacts: | only load |
| Electrical isolation: | 500 V (K-bus/LON-bus) |
| Bit width in the process image: | input/output: 36 bytes |
| Configuration: | KS2000, LonMaker or another LON Tool, TwinCAT (function blocks) |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Special features: | 15 devices; TwinCAT library: TwinCAT PLC LON |
| Weight: | approx. 85 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
