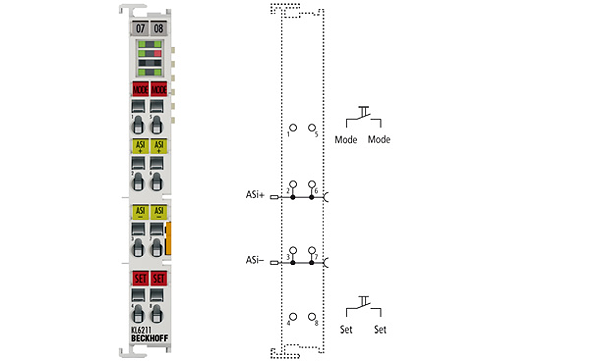

KL6211 | AS-Interface master terminal
Description
The AS-Interface master terminal is an extended master according to profile M3 and enables the direct connection of AS-Interface slaves. The AS-Interface-compliant interface supports digital and analog slaves, versions 2.0 and 2.1, safety slaves and slaves with Combined Transaction Type 1 (profile S-7.3 and 7.4). Process data exchange, parameterisation and the diagnosis are fieldbus-independent. Together with the different Bus Couplers, the KL6211 represents a universal AS-Interface/fieldbus gateway. Together with the BK3120, the PROFIBUS DP V1 services can be used for communication with the KL6211. Unlike the KL6201 AS-Interface master terminal, the KL6211 features power contacts. This enables direct connection to the AS-Interface supply via the KL9520 AS-Interface potential feed terminal or the KL9528 power supply terminal.
Technical parameters
| Technology: | AS-Interface |
| Number of channels: | 1 |
| AS-Interface channels: | 1 |
| Number of slaves: | 31 for V 2.0, 62 for V 2.1 |
| Specification version: | AS-Interface V 2.0, V 2.1 |
| Slave types: | digital and analog |
| Diagnostics: | power failure, slave failure, parameterisation fault |
| AS-Interface address assignment: | via configuration or automatic |
| Cycle time: | max. 5 ms (31 devices) |
| Connection: | 2 lines via spring force technology |
| Current consumption K-bus: | typ. 55 mA (K-bus), approx. 60 mA (AS-Interface) |
| Current consumption power contacts: | typ. 60 mA + load |
| Electrical isolation: | 500 V (AS-Interface/K-bus) |
| Power contacts: | yes |
| Bit width in the process image: | selectable: 12 bytes, 22 bytes or 38 bytes, of which 6 bytes parameter interface |
| Configuration: | via fieldbus parameter interface, DP-V1 or Bus Coupler through KS2000 |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL |
| AS-Interface certificate: | yes, ZU-No. 125801 |
