KL6051 | Data exchange terminal with serial interface

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

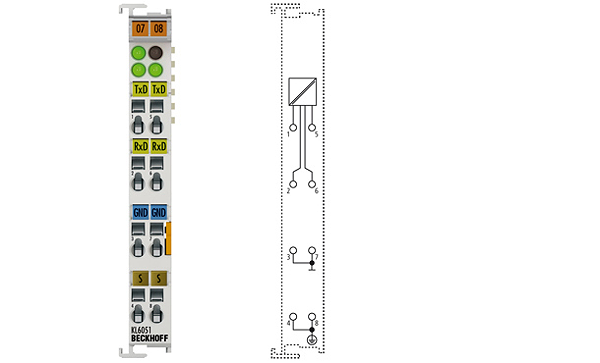

The KL6051 serial interface terminal makes it possible to exchange data between different fieldbus systems. Full duplex data exchange is possible, independently of the higher-level fieldbus. Under the terminal’s default setting, 32 inputs and 32 outputs are transferred between the fieldbus systems. The time to exchange the data is about 5 ms for 32 bits of I/O. The exchange of data with the Bus Coupler is indicated by the run LED. The TxD and RxD LEDs indicate the state of the signal transmission.

Technical parameters

Technology: 2 x RS422
Data transfer channels: TxD and RxD, full duplex
Data transfer rates: 62,500 baud, 32 bit bidirectional data exchange between two KL6051
Bit transfer: via 2 pairs of twisted wires with differential signals
Line impedance: 120 Ω
Cable length: approx. 1,000 m twisted pair
Power supply: via the K-bus
Current consumpt. K-bus: typ. 65 mA
Current consumption power contacts: – (no power contacts)
Electrical isolation: 500 V (K-bus/signal voltage)
Data buffer: 32 bit bidirectional
Bit width in the process image: input/output: 4 x 8 bit user data, 1 x 8 bit control/status (up to 5 x 8 bit user data are possible)
Configuration: no address or configuration setting
Special features: automatic data exchange
Weight: approx. 60 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals: CE, UL, Ex
