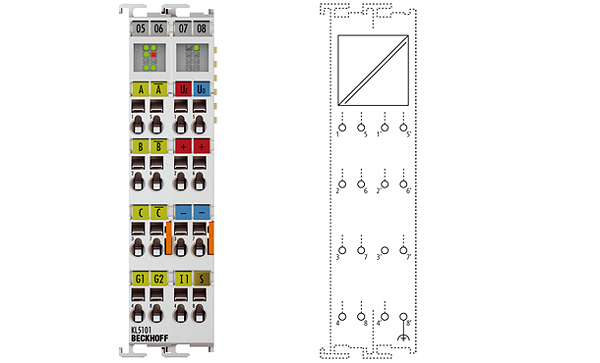

Beckhoff KL5101
KL5101 | Incremental encoder interface
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL5101 terminal is an interface for the direct connection of incremental encoders with differential input (RS422) or with single inputs. A 16 bit counter with a quadrature decoder and a 16 bit latch for the zero pulse can be read, set or enabled. Incremental encoders with alarm outputs can be connected at the interface’s status input. Interval measurement with a resolution of 200 ns is possible. The G2 input allows the counter to be halted (high = stop). The value is read with a rising edge at G1.
Technical parameters
| Technology: | incremental encoder interface RS422 |
| Number of channels: | 1 incremental encoder + 1 input |
| Encoder connection: | A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422); status input 5 V DC; gate/latch input 24 V DC |
| Encoder operating voltage: | 5 V DC |
| Encoder output current: | 0.5 A |
| Counter: | 16 bit, binary |
| Limit frequency: | 4 million increments/s (with 4-fold evaluation) |
| Quadrature decoder: | 1-, 2-, or 4-fold evaluation |
| Zero-pulse latch: | 16 bit |
| Commands: | read, set, enable |
| Power supply: | 24 V DC (-15 %/+20 %) |
| Supply voltage: | 24 V DC (-15 %/+20 %) |
| Current consumption power contacts: | – (no power contacts) |
| Current consumption K-bus: | typ. 60 mA |
| Bit width in the process image: | input: 1 x 16 bit data, 1 x 8 bit control/status |
| Weight: | approx. 85 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
