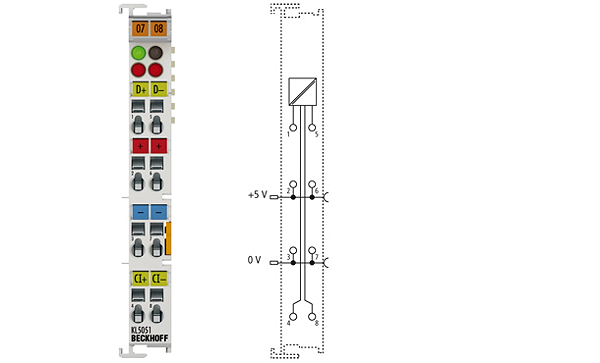

Beckhoff KL5051
KL5051 | Bidirectional SSI encoder interface
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL5051 bidirectional SSI interface terminal enables the connection of digital servo drives. The encoder is powered via the SSI interface, which consists of two logic channels. The first channel us used for the positioning of the drive, while the second channel is used to set releases, to transmit parameter data and to read status information and parameter values. The 5 V DC supply voltage can be generated with the KL9505 power supply terminal and fed into the power contacts.
Technical parameters
| Technology: | SSI encoder interface |
| Number of channels: | 1 encoder interface |
| Encoder connection: | binary input: D+, D-, binary output: Cl+, Cl- |
| Power supply: | 5 V DC via power contacts (KL9505) |
| Current consumption: | typ. 85 mA without encoder |
| Current consumption power contacts: | n. a. |
| Encoder supply: | 5 V DC |
| Data transfer rates: | 1 MHz |
| Serial input: | 24 bit width (variable) |
| Data direction: | bidirectional |
| Signal output: | difference signal (RS422) |
| Signal input: | difference signal (RS422) |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Current consumption K-bus: | typ. 75 mA |
| Bit width in the process image: | input/output: 2 x 16 bit data, 2 x 8 bit control/status |
| Special features: | bidirectional |
| Weight: | approx. 80 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
