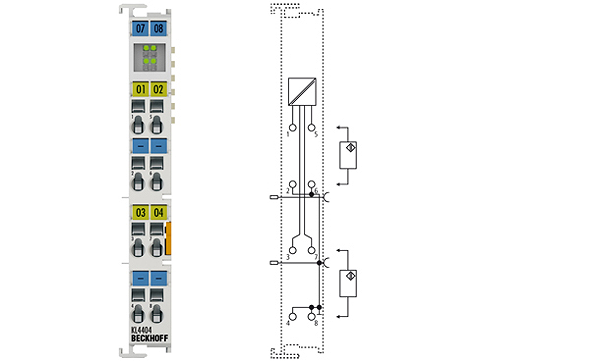

Beckhoff KL4404
KL4404 | 4-channel analog output terminal 0…10 V
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL4404 analog output terminal generates signals in the range between 0 to 10 V. The voltage is supplied to the process level with a resolution of 12 bits and is electrically isolated. In the KL4404 Bus Terminal, the four outputs are 2-wire versions.
Technical parameters
| Technology: | single-ended |
| Number of outputs: | 4 |
| Signal voltage: | 0…10 V |
| Load: | > 5 kΩ (short-circuit-proof) |
| Output error: | < ±0.1 % (relative to end value) |
| Resolution: | 12 bit |
| Conversion time: | ~ 4 ms |
| Electrical isolation: | 500 V (K-bus/signal voltage) |
| Current consumption power contacts: | only load |
| Current consumption K-bus: | typ. 20 mA |
| Bit width in the process image: | output: 4 x 16 bit data (4 x 8 bit control/status optional) |
| Configuration: | no address or configuration setting |
| Weight: | approx. 75 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex, GL |
