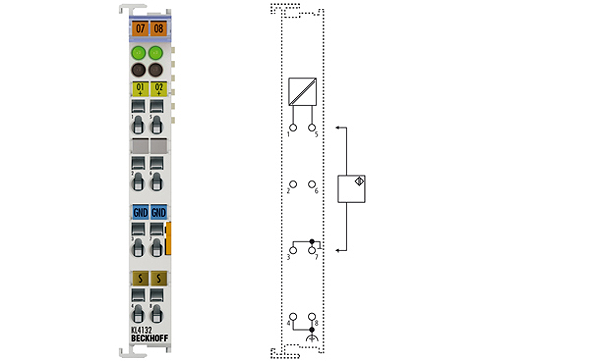

Beckhoff KL4132
KL4132 | 2-channel analog output terminal -10…+10 V
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL4132 analog output terminal generates signals in the range from -10 to +10 V. The voltage is supplied to the process level with a resolution of 16 bits and is electrically isolated. The output channels of a Bus Terminal have a common ground potential. The two run LEDs give an indication of the data exchange with the Bus Coupler.
Technical parameters
| Technology: | single-ended |
| Number of outputs: | 2 |
| Power supply: | via the K-bus |
| Signal voltage: | -10…+10 V |
| Load: | > 5 kΩ (short-circuit-proof) |
| Output error: | < ±0.1 % (relative to end value) |
| Resolution: | 16 bit |
| Conversion time: | ~ 1.5 ms |
| Electrical isolation: | 500 V (K-bus/signal voltage) |
| Current consumption power contacts: | – (no power contacts) |
| Current consumption K-bus: | typ. 75 mA |
| Bit width in the process image: | output: 2 x 16 bit data (2 x 8 bit control/status optional) |
| Configuration: | no address or configuration setting |
| Special features: | increased resolution |
| Weight: | approx. 85 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
