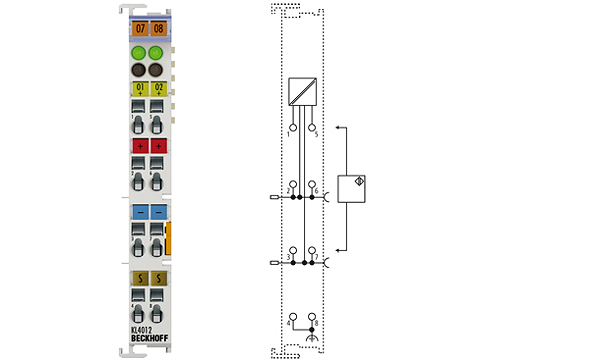

Beckhoff KL4012
KL4012 | 2-channel analog output terminal 0…20 mA
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL4012 analog output terminal generates analog output signals in the range from 0 to 20 mA. The power is supplied to the process level with a resolution of 12 bits and is electrically isolated. Ground potential for the output channels of the Bus Terminal is common with the 24 V DC supply. The output stages are powered by the 24 V supply. The run LEDs give an indication of the data exchange with the Bus Coupler.
Technical parameters
| Technology: | single-ended |
| Number of outputs: | 2 |
| Power supply: | 24 V DC via power contacts (alternative 15 V DC with power supply terminal KL9515) |
| Signal current: | 0…20 mA |
| Load: | < 500 Ω |
| Output error: | < ±0.1 % (relative to end value) |
| Resolution: | 12 bit |
| Conversion time: | ~ 1.5 ms |
| Electrical isolation: | 500 V (K-bus/signal voltage) |
| Current consumption power contacts: | typ. 50 mA + load |
| Current consumption K-bus: | typ. 60 mA |
| Bit width in the process image: | output: 2 x 16 bit data (2 x 8 bit control/status optional) |
| Configuration: | no address or configuration setting |
| Weight: | approx. 80 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex, GL |
