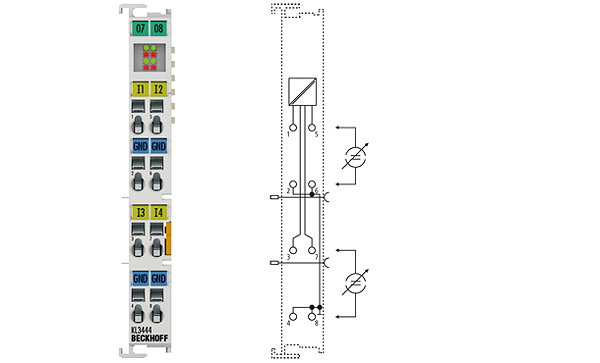

Beckhoff KL3444
KL3444 | 4-channel analog input terminal 0…20 mA
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL3444 analog input terminal processes signals in the range between 0 and 20 mA. The current is digitised to a resolution of 12 bits and is transmitted, in an electrically isolated form, to the higher-level automation device. In the KL3444, the four inputs are 2-wire versions and have a common ground potential. The reference ground of the inputs is the internal ground. Overload is detected. The terminal status is relayed to the controller via the K-bus. The LEDs indicate the data exchange with the Bus Coupler as well as overload or wire breakage.
Technical parameters
| Number of inputs: | 4 |
| Power supply: | via the K-bus |
| Signal current: | 0…20 mA |
| Technology: | single-ended |
| Internal resistance: | < 85 Ω |
| Common-mode voltage UCM: | – |
| Conversion time: | ~ 2 ms |
| Resolution: | 12 bit |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Surge voltage resistance: | 30 V DC |
| Electrical isolation: | 500 V (K-bus/signal voltage) |
| Current consumption power contacts: | – |
| Current consumption K-bus: | typ. 85 mA |
| Bit width in the process image: | input: 4 x 16 bit data (4 x 8 bit control/status optional) |
| Configuration: | no address or configuration setting |
| Special features: | – |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex, GL |
