Beckhoff KL3356
KL3356 | 1-channel accurate resistor bridge evaluation
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description

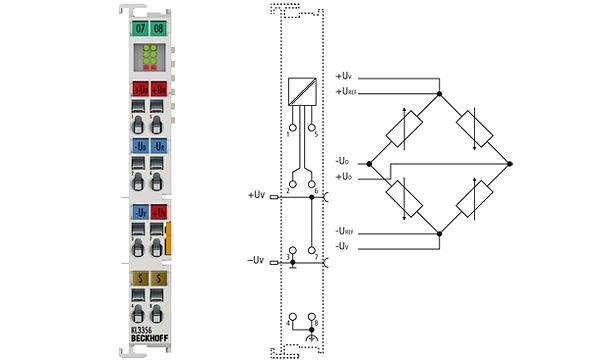

The KL3356 analog input terminal permits direct connection of a resistor bridge. An improved input circuit makes the KL3356 significantly more accurate than the KL3351. The ratio between the bridge voltage U. D, and the supply voltage U. REF, is determined in the input circuit. In order to achieve good long-term stability, the complete circuit is re-calibrated at least every three minutes. This procedure can be synchronised by the control in order to prevent the calibration leading to a delay in the production process.
Technical parameters
| Number of inputs: | 2, for 1 resistor bridge |
| Power supply: | via the K-bus |
| Signal voltage: | UD: -20…+20 mV UREF: -12…+12 V |
| Signal voltage UD, UREF: | -20…+20 mV, -12…+12 V |
| Technology: | DMS connection |
| Internal resistance: | > 200 kΩ (UREF), > 1 MΩ (UD) |
| Power supply UV: | via power contacts |
| Conversion time: | < 250 ms, configurable |
| Filter: | 50 Hz, configurable |
| Resolution: | 16 bit |
| Measuring error: | < ±0.01 % (relative to full scale value) |
| Current consumption power contacts: | only load |
| Current consumpt. K-bus: | typ. 85 mA |
| Bit width in the process image: | input: 2 x 16 bit data (2 x 8 bit control/status optional) |
| Special features: | increased measuring accuracy, self-calibration |
| Weight: | approx. 75 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
