KL3214

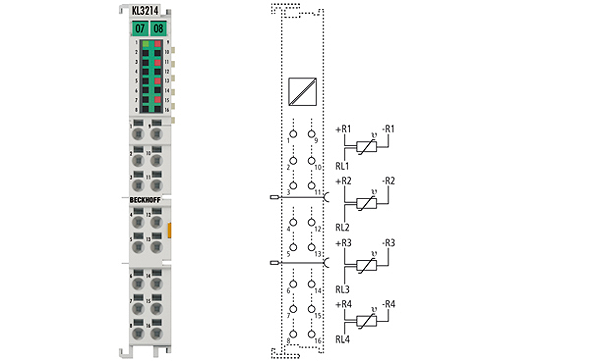

KL3214 | 4-channel input terminal PT100 (RTD) for 3-wire connection
The KL3214 analog input terminal allows four resistance sensors to be connected directly. The Bus Terminal circuit can operate sensors using the 3-wire technique in a compact 12 mm housing. A microprocessor handles linearisation across the whole temperature range, which is freely selectable. The Bus Terminal’s standard settings are: resolution 0.1 °C. Sensor malfunctions such as broken wires are indicated by error LEDs.
Number of inputs: | 4 |
Power supply: | via the K-bus |
Input filter limit frequency: | typ. 1 kHz |
Sensor types: | PT100/200/500/1000, Ni100/120/1000, potentiometer: 10 Ω…1.2/4 kΩ, KTY sensors (types see documentation) |
Connection method: | 3-wire |
Measuring range: | -200…+850 °C (PT sensors); -60…+250 °C (Ni sensors) |
Conversion time: | approx. 170 ms default setting |
Measuring current: | < 0.5 mA (load-dependent) |
Resolution: | 0.1 °C per digit |
Measuring error: | < ±0.5 °C for PT sensors |
Electrical isolation: | 500 V (K-bus/signal voltage) |
Current consumption power contacts: | – |
Current consumption K-bus: | typ. 120 mA |
Special features: | open-circuit recognition |
Weight: | approx. 60 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Approvals: | CE, UL |
