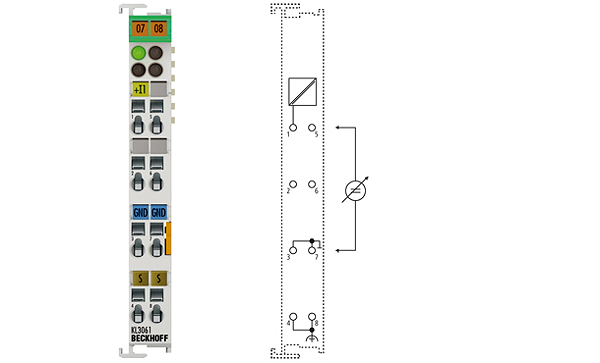

Article image KL3061

Beckhoff KL3061

KL3061 | 1-channel analog input terminal 0…10 V

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The KL3061 analog input terminal handles signals in the range from 0 to 10 V. The voltage is digitised to a resolution of 12 bits and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the Bus Terminal have a common ground potential, the reference ground. The KL3061 is characterised by its fine granularity and electrical isolation. The run LEDs give an indication of the data exchange with the Bus Coupler.

Technical parameters

Number of inputs: 1
Power supply: via the K-bus
Signal voltage: 0…10 V
Technology: single-ended
Internal resistance: > 200 kΩ typ.
Common-mode voltage UCM:
Conversion time: ~ 1 ms
Resolution: 12 bit
Measuring error: < ±0.3 % (relative to full scale value)
Electrical isolation: 500 V (K-bus/signal voltage)
Current consumption power contacts: – (no power contacts)
Current consumption K-bus: typ. 60 mA
Bit width in the process image: input: 1 x 16 bit data (1 x 8 bit control/status optional)
Configuration: no address or configuration setting
Weight: approx. 60 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals: CE, UL, Ex
