Beckhoff KL3051

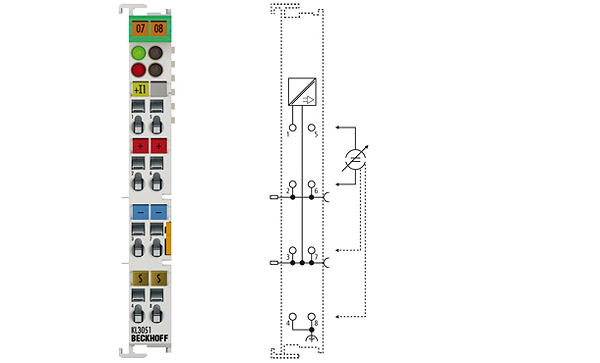

KL3051 | 1-channel loop-powered input terminal 4…20 mA

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The job of the KL3051 analog input terminal is to supply power to measuring transducers located in the field and to transmit analog measurement signals with electrical isolation to the automation device. The voltage for the sensors is supplied to the terminal via the power contacts. The power contacts can optionally be supplied with operating voltage in the standard way or via a power feed terminal (KL9xxx) with electrical isolation. The input electronics is independent of the supply voltage of the power contacts. The 0 V rail is the reference potential for the inputs. The run LEDs give an indication of the data exchange with the Bus Coupler. The error LEDs indicate an overload condition and a broken wire.

Technical parameters

Number of inputs: 1
Power supply: 24 V DC via power contacts
Signal current: 4…20 mA
Technology: single-ended
Internal resistance: 80 Ω + 0.7 V
Common-mode voltage UCM:
Resolution: 12 bit
Conversion time: ~ 1 ms
Measuring error: < ±0.3 % (relative to full scale value)
Surge voltage resistance: 35 V max.
Electrical isolation: 500 V (K-bus/signal voltage)
Current consumption power contacts: only load
Current consumption K-bus: typ. 65 mA
Bit width in the process image: input: 1 x 16 bit data (1 x 8 bit control/status optional)
Configuration: no address or configuration setting
Special features: with sensor supply
Weight: approx. 70 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals: CE, UL, Ex, GL
