KL2652

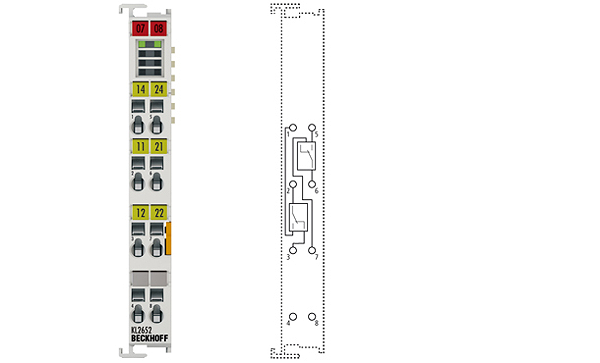

KL2652 | 2-channel relay output terminal 230 V AC, 300 V DC
The KL2652 output terminal has two relays, each featuring a change-over contact. The relay contact can be used universally for switching devices requiring mains power up to 230 V AC or 300 V DC. The KL2652 Bus Terminal is equipped with potential-free contacts. The signal state of the Bus Terminal is indicated via LEDs.
Number of outputs: | 2 x change-over |
Nominal voltage: | 230 V AC (max. switching voltage 250 V AC/300 V DC) |
Switching voltage max.: | 250 V AC, 300 V DC |
Load type: | ohmic, inductive, lamp load |
Max. output current: | 5 A per channel |
Switching current: | max. 1 A AC/1 A DC at 40 V DC; max. 0.15 A at 300 V DC (UL: max. 230 V AC, 1 A) |
Switching current max.: | 1 A AC/1 A DC at 40 V DC; 0.15 A at 300 V DC (UL: max. 230 V AC, 1 A) |
Minimum permitted load: | 100 mA (12 V DC) |
Lamp test, electronic ballast: | max. 6 A starting current |
Electrical isolation: | 1.5 kV (K-bus/field potential); 2.5 kV rated surge voltage, overvoltage category III |
Current consumption power contacts: | – |
Current consumption K-bus: | typ. 90 mA |
Bit width in the process image: | 2 outputs |
Switching frequency max.: | 6/min. (at rated load) |
Operating cycles mech. (min.): | 5 x 106 |
Operating cycles electr. (min.): | 1 x 106 (1 A/250 V AC) |
Configuration: | no address or configuration setting |
Special features: | reverse switching realisable |
Weight: | approx. 55 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Pluggable wiring: | for all KSxxxx Bus Terminals |
Approvals: | CE, UL |
