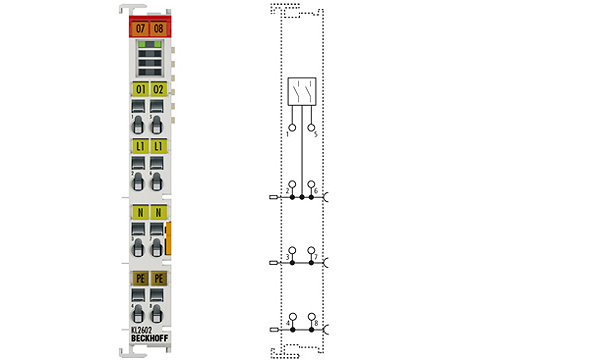

Beckhoff KL2602
KL2602 | 2-channel relay output terminal
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL2602 output terminal has two relays, each with a single contact, and can be used to switch devices requiring mains power and operating at up to 230 V AC. The relay contacts of the KL2602 are connected to the power contacts.
Technical parameters
| Number of outputs: | 2 x make contacts for power contact |
| Nominal voltage: | 230 V AC/30 V DC |
| Load type: | ohmic, inductive, lamp load |
| Max. output current: | 5 A per channel |
| Switching current: | 5 A AC/DC (ohmic)/2 A AC/DC (inductive) |
| Ohmic switching current: | 5 A AC/DC |
| Inductive switching current: | 2 A AC/DC |
| Minimum permitted load: | 10 mA at 5 V DC |
| Lamp test, electronic ballast: | max. 5 A starting current (4 x 58 W) |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Current consumption power contacts: | only load |
| Current consumption K-bus: | typ. 80 mA |
| Bit width in the process image: | 2 outputs |
| Operating cycles mech. (min.): | 2 x 107 |
| Operating cycles electr. (min.): | 1 x 105 (5 A/30 V DC) |
| Configuration: | no address or configuration setting |
| Special features: | power relay |
| Weight: | approx. 85 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex, GL |
