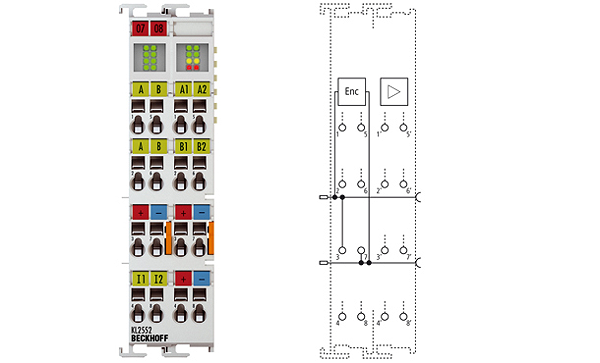

KL2552 | 2-channel DC motor output stage 50 V DC, 5 A

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The KL2552 Bus Terminal enables direct operation of two DC motors. It is galvanically isolated from the K-bus. The speed is specified by the automation device via a 16 bit value. Connection of an incremental encoder enables a simple servo axis to be realised. Typical motor parameters can be set in order to avoid critical conditions of the DC motor. The load can be protected by limiting the maximum values for speed, torque and acceleration. The output stage is protected against overload and short-circuit. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes. The LEDs enable quick local diagnosis.

Technical parameters

Technology: compact Drive Technology
Load type: DC brush motor, inductive
Number of channels: 2
Number of outputs: 1 x DC motor per channel
Number of inputs: 1 x end position, 1 x encoder per channel
Connection technology: direct motor connection
Supply voltage electronics: 24 V DC (via power contacts)
Supply voltage power: 8…50 V DC (external)
Max. output current: 2 x 5 A (short-circuit proof, thermal-overload proof for both channels together)
Resolution: max. 10 bit current, 16 bit speed
Encoder input signal: 5…24 V DC, typ. 5 mA, single-ended
Pulse frequency: max. 400,000 increments/s (with 4-fold evaluation)
Current consumption power contacts: typ. 50 mA
Current consumption K-bus: typ. 100 mA
Bit width in the process image: 48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status
Electrical isolation: 500 V (K-bus/field potential)
Weight: approx. 100 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/see documentation
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals/markings: CE, UL

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
