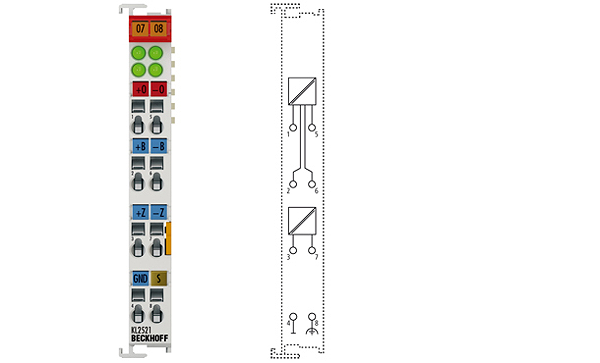

Beckhoff KL2521
KL2521 | 1-channel pulse train output terminal RS422/24 V DC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL2521 output terminal alters the frequency of a binary signal and (electrically isolated from the K-bus) outputs it. The frequency is preset by a 16 bit value from the automation unit. The output stage is RS422 compatible and, in the version KL2521-0024, can be driven with 24 V DC signals. The Bus Terminal indicates its signal state by means of light emitting diodes. The LEDs are driven in time with the outputs and each displays an active output.
Technical parameters
| Number of inputs: | 2 (+T, +Z) |
| Load type: | RS422 input |
| Signal voltage: | RS422 level |
| Max. output current: | RS422 specification |
| PWM clock frequency: | 1…500 kHz, 50 kHz default |
| Duty factor: | 50 % (±20 %) |
| Resolution: | max. 15 bit |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Current consumption K-bus: | typ. 50 mA, max. 120 mA (load-dependent) |
| Bit width in the process image: | 24 inputs/outputs: 1 x 16 bit data, 1 x 8 bit control/status |
| Configuration: | configuration via Bus Coupler or controller |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
