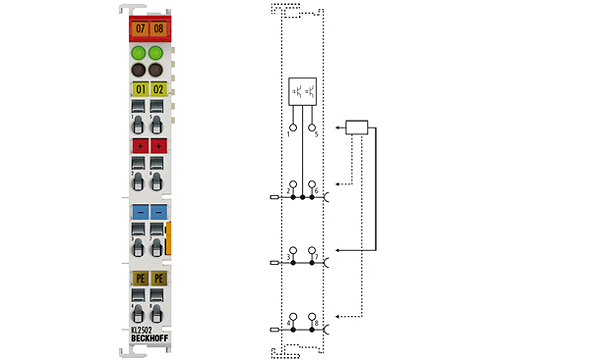

Beckhoff KL2502
KL2502 | 2-channel pulse width output terminal 24 V DC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL2502 output terminal modulates the pulse width of a binary signal, and outputs it electrically isolated from the K-bus. The mark/space ratio is prescribed by a 16 bit value from the automation unit. The output stage is protected against overload and short-circuit. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes. The LEDs are driven in time with the outputs and show the mark/space ratio by their brightness.
Technical parameters
| Number of outputs: | 2 |
| Rated load voltage: | 24 V DC (-15 %/+20 %) |
| Load type: | ohmic |
| Max. output current: | 0.1 A (1 A driver component) per channel |
| PWM clock frequency: | 1…20 kHz, 250 Hz default |
| Duty factor: | 0…100 % (TON > 750 ns, TOFF > 500 ns) |
| Resolution: | max. 10 bit |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Current consumption power contacts: | typ. 10 mA + load |
| Current consumption K-bus: | typ. 18 mA |
| Bit width in the process image: | 48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status |
| Configuration: | no address setting, configuration via Bus Coupler or controller |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex, IECEx |
