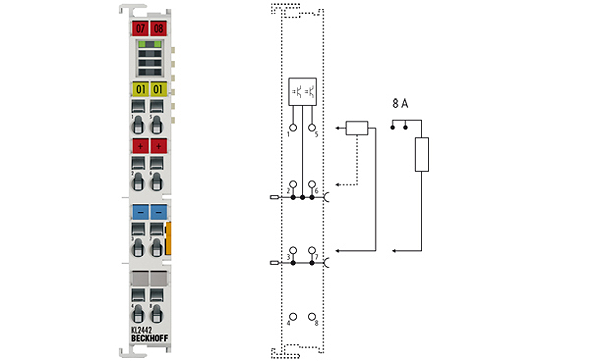

Beckhoff KL2442
KL2442 | 2-channel digital output terminal 24 V DC, 2 x 4 A/1 x 8 A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL2442 digital output terminal connects the binary 24 V control signals, electrically isolated, with the actuators. Two channels are available and indicate their signal state via LEDs. The KL2442 enables connection of loads with current consumption up to 8 A if the outputs are connected in parallel.
Technical parameters
| Connection technology: | 3-wire |
| Number of outputs: | 2 |
| Rated load voltage: | 24 V DC (-15 %/+20 %) |
| Load type: | ohmic, inductive, lamp load |
| Max. output current: | 4.0 A (short-circuit-proof) per channel, 8 A for parallel connection |
| Short circuit current: | < 70 A |
| Breaking energy: | no data |
| Reverse voltage protection: | yes |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Current consumption power contacts: | typ. 30 mA + load |
| Current consumpt. K-bus: | typ. 9 mA |
| Bit width in the process image: | 2 outputs |
| Configuration: | no address or configuration setting |
| Weight: | approx. 70 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE |
