KL2404

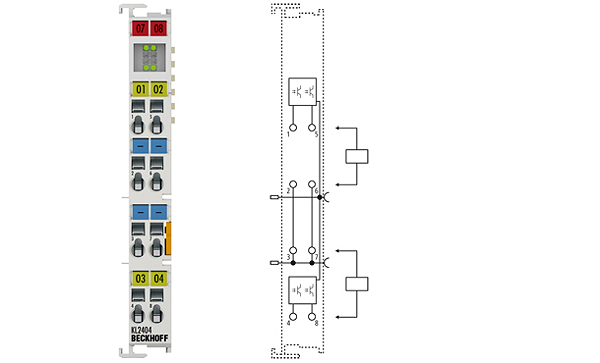

KL2404 | 4-channel digital output terminal 24 V DC
The KL2404 digital output terminal connects the binary 24 V control signals electrically isolated with the actuators. The Bus Terminal contains four channels that indicate their signal state by means of LEDs. The 4-channel Bus Terminal enables the direct connection of four 2-wire sensors. Four ground connection points are provided.
Connection technology: | 2-wire |
Number of outputs: | 4 |
Rated load voltage: | 24 V DC (-15 %/+20 %) |
Load type: | ohmic, inductive, lamp load |
Max. output current: | 0.5 A (short-circuit-proof) per channel |
Short circuit current: | < 2 A |
Breaking energy: | < 150 mJ/channel |
Reverse voltage protection: | yes |
Electrical isolation: | 500 V (K-bus/field potential) |
Current consumption power contacts: | typ. 30 mA + load |
Current consumption K-bus: | typ. 9 mA |
Bit width in the process image: | 4 outputs |
Configuration: | no address or configuration setting |
Weight: | approx. 70 g |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Pluggable wiring: | for all KSxxxx Bus Terminals |
