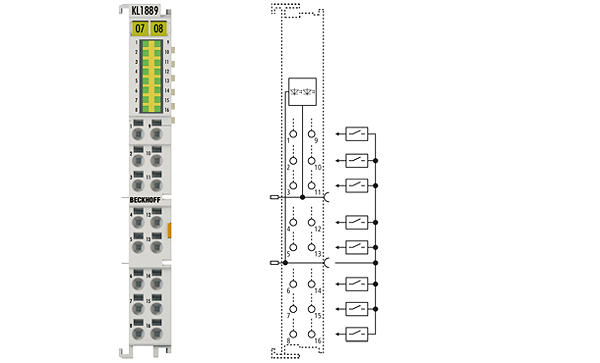

Article image KL1889

Beckhoff KL1889

KL1889 | HD Bus Terminal, 16-channel digital input 24 V DC, 0 V (ground) switching

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The KL1889 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation device. The Bus Terminal contains 16 channels, whose signal states are displayed by LEDs. The terminal is particularly suitable for space-saving use in control cabinets. By using the single-conductor connection technique, a multi-channel sensor can be connected in the smallest space with a minimum amount of wiring. The power contacts are looped through.

Technical parameters

Connection technology: 1-wire
Specification: negative switching
Number of inputs: 16
Nominal voltage: 24 V DC (-15 %/+20 %)
“0“ signal voltage: 18…30 V
“1“ signal voltage: 0…7 V
Input filter: typ. 3.0 ms
Input current: typ. 3 mA
Current consumpt. K-bus: typ. 20 mA
Current consumption power contacts: typ. 4 mA + load
Electrical isolation: 500 V (K-bus/field potential)
Bit width in the process image: 16 inputs
Configuration: no address or configuration setting
Conductor types: solid wire, stranded wire and ferrule
Conductor connection: solid wire conductors: direct plug-in technique; stranded wire conductors and ferrules: spring actuation by screwdriver
Rated cross-section: solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm²
Weight: approx. 55 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable (see documentation)
Approvals: CE, UL, Ex, GL
