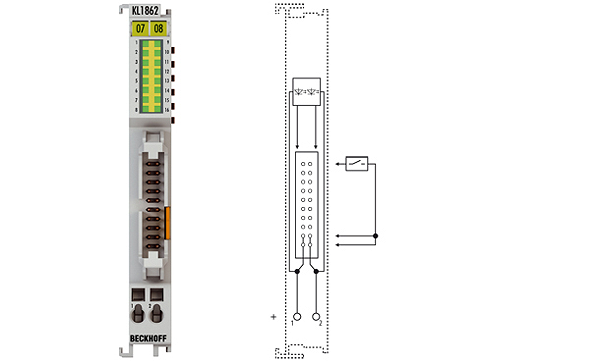

Beckhoff KL1862
KL1862 | 16-channel digital input terminal 24 V DC, type 3, flat-ribbon cable connection
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL1862 digital input terminal offers a very compact design with its 16 channels. A 20-pin connector enables the secure connection of plug connectors using insulation displacement contact, as is usual for ribbon cables and special round cables. This significantly simplifies the wiring of many channels. The input characteristic conforms to the type 3 specification and guarantees minimum power dissipation. 16 LEDs display the logical signal states of the inputs.
Technical parameters
| Connection technology: | flat-ribbon cable |
| Specification: | EN 61131-2, type 1/3 |
| Number of inputs: | 16 |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| “0“ signal voltage: | -3…+5 V (EN 61131-2, type 1/3) |
| “1“ signal voltage: | 11…30 V (EN 61131-2, type 3) |
| “0“ signal current: | 0…1.5 mA |
| “1“ signal current: | 2.0…2.5 mA |
| Input filter: | typ. 3.0 ms |
| Current consumption K-bus: | typ. 3 mA |
| Current consumption power contacts: | typ. 4 mA from the 24 V supply (no power contacts) |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Bit width in the process image: | 16 inputs |
| Configuration: | no address or configuration setting |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
