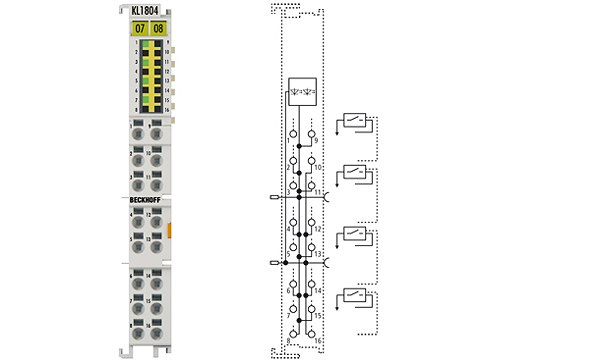

Beckhoff KL1804
KL1804 | HD Bus Terminal, 4-channel digital input 24 V DC, 3-wire connection
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL1804 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation device. The Bus Terminal contains four channels, consisting of a signal input, 24 V DC and 0 V. The signal states are displayed by LEDs. The power contacts are looped through. The reference ground for all inputs is the 0 V power contact. The wires can be connected without tools in the case of solid wires using a direct plug-in technique.
Technical parameters
| Connection technology: | 3-wire |
| Specification: | EN 61131-2, type 1/3 |
| Number of inputs: | 4 |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| “0“ signal voltage: | -3…+5 V (EN 61131-2, type 1/3) |
| “1“ signal voltage: | 11…30 V (EN 61131-2, type 3) |
| Input filter: | typ. 3.0 ms |
| Input current: | typ. 3 mA (EN 61131-2, type 3) |
| Current consumption K-bus: | typ. 10 mA |
| Current consumption power contacts: | typ. 1 mA + load |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Bit width in the process image: | 4 inputs |
| Configuration: | no address or configuration setting |
| Conductor types: | solid wire, stranded wire and ferrule |
| Conductor connection: | solid wire conductors: direct plug-in technique; stranded wire conductors and ferrules: spring actuation by screwdriver |
| Rated cross-section: | solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm² |
| Weight: | approx. 60 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable (see documentation) |
| Approvals: | CE, UL, Ex, GL |
