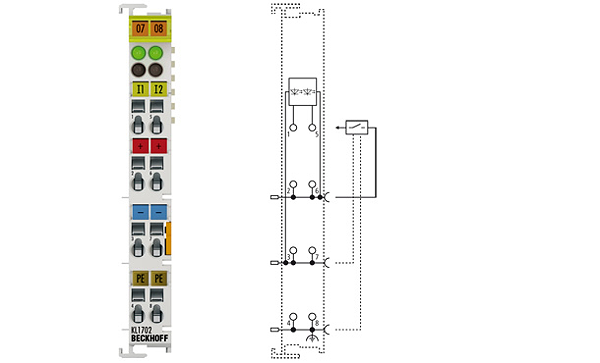

Beckhoff KL1702
KL1702 | 2-channel digital input terminal 120/230 V AC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL1702 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. It is possible to connect 120 V/230 V AC actuators directly. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes.
Technical parameters
| Connection technology: | 4-wire |
| Number of inputs: | 2 |
| Nominal voltage: | 120/230 V AC |
| “0“ signal voltage: | 0…40 V |
| “1“ signal voltage: | 79…260 V |
| Input filter: | typ. 10 ms |
| Input current: | > 3 mA, typ. 6 mA |
| Current consumpt. K-bus: | typ. 3 mA |
| Switching times: | 10 ms |
| Electrical isolation: | 500 V (K-bus/mains voltage); 3,750 V AC, 1 min. |
| Bit width in the process image: | 2 inputs |
| Configuration: | no address or configuration setting |
| Special features: | ohmic/capacitive input behaviour |
| Weight: | approx. 60 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
