KL1501 | Up/down counter 24 V DC, 100 kHz

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

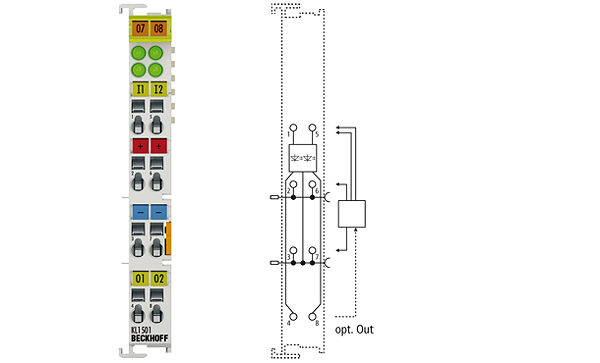

The KL1501 Bus Terminal is an up/down counter. It transmits the counter state to the higher-level automation device in an electrically isolated manner. When it is used as a single-channel up/down counter (32 bit), the pulse is set via the clock input, while the count direction is set via the up/down input. The input can also be used as a gate input for triggering the counter. In two-counter mode, two separate counters (Clock and Clock1 inputs) with each 16  bit are available, which can be parameterised as up or down counters. The signal state of the inputs and outputs is indicated by light emitting diodes. Both outputs are switched according to the counter state, so that they can be used as fast control signals for field devices.

Technical parameters

Connection technology: 1 x up/down counter, 2 x up or down counter
Specification: EN 61131-2, type 1, “0”: < 5 V DC, “1”: > 15 V DC, typ. 5 mA
Number of counters: 1 or 2
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: -3…+5 V (EN 61131-2, type 1)
“1” signal voltage: 15…30 V (EN 61131-2, type 1)
Counting frequency: max. 100 kHz (2 kHz for switching between up and down)
Counter depth: 32 bit
Input current: typ. 5 mA (EN 61131-2, type 1)
Max. output current: 24 V/0.5 A (short-circuit proof) per channel
Current consumption K-bus: typ. 50 mA
Current consumption power contacts: load only
Electrical isolation: 500 V (K-bus/field potential)
Bit width in the process image: 40 inputs/outputs: 32 bit data, 8 bit control/status
Configuration: no address setting, configuration via Bus Coupler or controller
Special features: set counters, switch outputs
Weight: approx. 50 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals: CE, UL, Ex, IECEx
