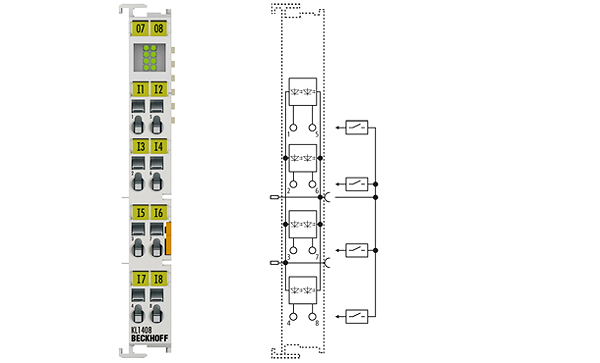

Beckhoff KL1408
KL1408 | 8-channel digital input terminal 24 V DC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The digital input terminal KL1408 acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains eight channels which indicate their signal state by means of light emitting diodes. It is particularly suitable for space-saving use in control cabinets. By using the single-ended connection technique, a multi-channel sensor can be connected in the smallest space with a minimum amount of wiring. The power contacts are looped through. For the KL1408, the reference ground for all inputs is the 0 V power contact.
Technical parameters
| Connection technology: | 1-wire |
| Specification: | EN 61131-2, type 1/3 |
| Number of inputs: | 8 |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| “0“ signal voltage: | -3…+5 V (EN 61131-2, type 1/3) |
| “1“ signal voltage: | 11…30 V (EN 61131-2, type 3) |
| “0“ signal current: | 0…1.5 mA |
| “1“ signal current: | 2.0…2.5 mA |
| Input filter: | typ. 3.0 ms |
| Current consumption K-bus: | typ. 5 mA |
| Current consumption power contacts: | typ. 2 mA + load |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Bit width in the process image: | 8 inputs |
| Configuration: | no address or configuration setting |
| Weight: | approx. 55 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex, GL |
