KL1362
KL1362 | 2-channel digital input terminal for break-in alarm

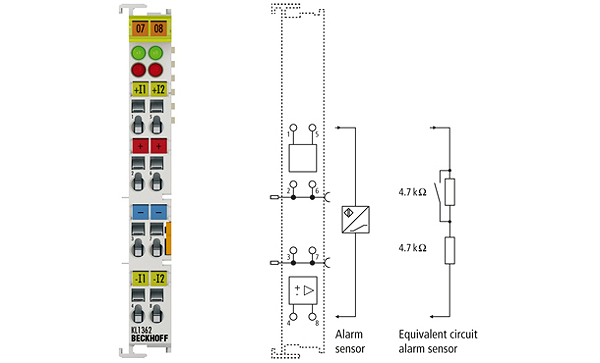

The digital KL1362 input terminal analyses the input signals of break-in sensors with the aid of a current loop. Alarm contacts with a fixed resistance ratio can be monitored safely. In the process image, the state of the sensor is indicated by one bit each. A further bit reports short-circuits or line interruptions. Red or green LEDs indicate the state of the two input bits.
Connection technology: | 2-wire |
Specification: | break-in alarm |
Number of inputs: | 2 |
Nominal voltage: | 24 V (-15 %/+20 %) |
“0” signal current: | ≤ 1 mA |
“1” signal current: | ≥ 1 mA |
Operating voltage: | 5.1 V |
Line interruption: | < 0.1 mA |
Short-circuit: | > 3 mA |
Cable resistance: | ≤ 200 Ω |
Input filter: | 3.0 ms |
Current consumption K-bus: | typ. 35 mA |
Electrical isolation: | 500 V (K-bus/field potential) |
Bit width in the process image: | 4 inputs |
Configuration: | no address or configuration setting |
Special features: | monitoring of alarm contacts |
Weight: | approx. 55 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Pluggable wiring: | for all KSxxxx Bus Terminals |
Approvals/markings: | CE, UL, ATEX, GL |
Ex marking: | II 3 G Ex nA IIC T4 Gc |
