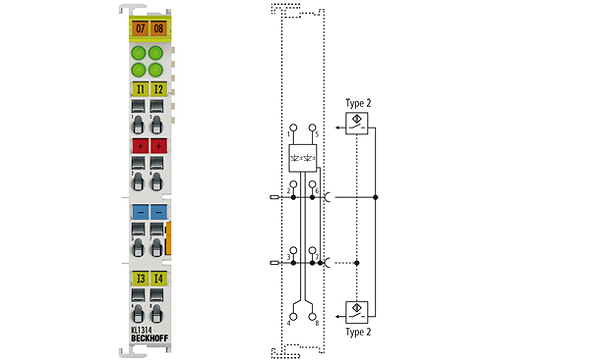

Beckhoff KL1314
KL1314 | 4-channel digital input terminal 24 V DC for type 2 sensors
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL1314 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes. The input signal corresponds to the standard EN 61131-2, type 2. This way, it is possible to connect 2-wire sensors.
Technical parameters
| Connection technology: | 2-/3-wire |
| Specification: | EN 61131-2, type 2 |
| Number of inputs: | 4 |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| “0” signal voltage: | -3…+5 V (EN 61131-2, type 2) |
| “1” signal voltage: | 11…30 V (EN 61131-2, type 2) |
| Input filter: | typ. 0.2 ms |
| Input current: | typ. 6 mA (EN 61131-2, type 2) |
| Current consumption K-bus: | typ. 3 mA |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Bit width in the process image: | 4 inputs |
| Configuration: | no address or configuration setting |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals/markings: | CE, UL, ATEX |
| Ex marking: | II 3 G Ex nA IIC T4 Gc |
