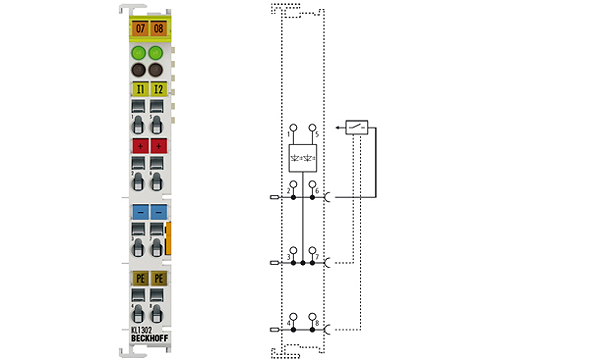

Article image KL1302

Beckhoff KL1302

KL1302 | 2-channel digital input terminal 24 V DC for type 2 sensors

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The KL1302 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes. The input signal corresponds to the standard EN 61131-2, type 2. This way, it is possible to connect 2-wire sensors.

Technical parameters

Connection technology: 4-wire
Specification: EN 61131-2, type 2
Number of inputs: 2
Nominal voltage: 24 V DC (-15 %/+20 %)
“0“ signal voltage: -3…+5 V (EN 61131-2, type 2)
“1“ signal voltage: 11…30 V (EN 61131-2, type 2)
Input filter: typ. 3.0 ms
Input current: typ. 6 mA (EN 61131-2, type 2)
Current consumption K-bus: typ. 3 mA
Electrical isolation: 500 V (K-bus/field potential)
Bit width in the process image: 2 inputs
Configuration: no address or configuration setting
Weight: approx. 50 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals: CE, UL, Ex
