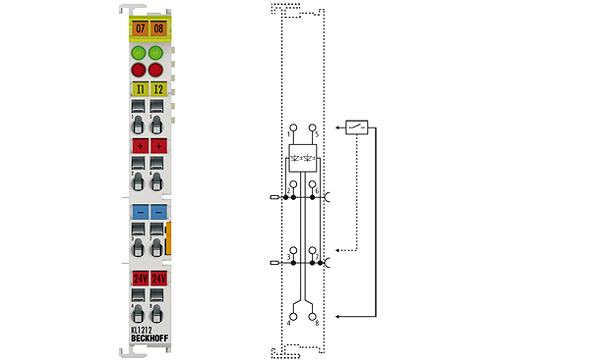

Beckhoff KL1212
KL1212 | 2-channel digital input terminal 24 V DC with short-circuit protected sensor supply and diagnostics
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL1212 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The KL1212 generates a short-circuit protected 24 V DC supply voltage for sensors. The sensor outputs can be switched on or off by the controller. A short-circuit or an open lead in the sensor supply is detected, and the terminal status is relayed to the controller via the K-bus. The Bus Terminal contains two channels that indicate their signal state and errors by means of LEDs.
Technical parameters
| Connection technology: | 3-wire |
| Specification: | EN 61131-2, type 1 |
| Number of inputs: | 2 |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| “0” signal voltage: | -3…+5 V |
| “1” signal voltage: | 15…30 V |
| Input filter: | typ. 3.0 ms |
| Input current: | typ. 5 mA |
| Sensor supply max.: | 0.5 A (short-circuit-proof) |
| Current consumption K-bus: | typ. 8 mA |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Bit width in the process image: | input/output: 4 inputs (2 error bits/2 signal bits); 2 outputs (2 sensor supply) |
| Input/output bit assignments input:: | input: bit 3 bit 2 bit 1 bit 0 output: bit 1 bit 0 err. 2 err. 1 on 2 on 1 off 2 off 1 bit 3 err. 2 |
| input:: | bit 3 |
| Configuration: | no address or configuration setting |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals/markings: | CE, UL, ATEX, GL |
| Ex marking: | II 3 G Ex nA IIC T4 Gc |
