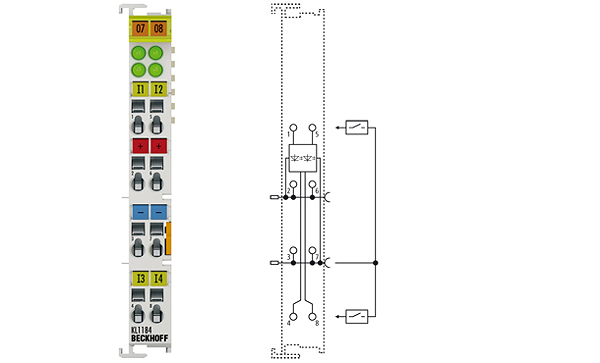

KL1184 | 4-channel digital input terminal 24 V DC, switching to negative potential

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The KL1184 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. Sensors that switch to 0 V (ground) can be connected to the KL1184. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes.

Technical parameters

Connection technology: 2-/3-wire
Specification: negative switching
Number of inputs: 4
Nominal voltage: 24 V DC (-15 %/+20 %)
“0“ signal voltage: 18…30 V
“1“ signal voltage: 0…7 V
Input filter: typ. 3.0 ms
Input current: typ. 5 mA
Current consumption K-bus: typ. 8 mA
Electrical isolation: 500 V (K-bus/field potential)
Bit width in the process image: 4 inputs
Configuration: no address or configuration setting
Weight: approx. 55 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.: IP 20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals: CE, UL, Ex

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
