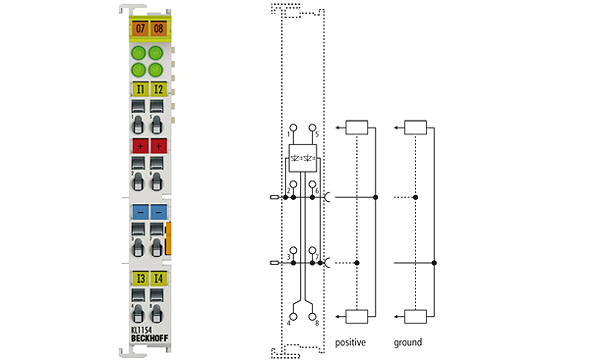

Beckhoff KL1154
KL1154 | 4-channel digital input terminal 24 V DC, switching to positive and ground potentials
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL1154 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. Sensors that switch to the positive potential or to 0 V (ground) can be connected to the KL1154. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes.
Technical parameters
| Connection technology: | 2-/3-wire |
| Specification: | positive and ground switching |
| Number of inputs: | 4 |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| “0” signal voltage: | 7.6…17.4 V |
| “1” signal voltage: | 0…7 V and 18…30 V |
| Input filter: | typ. 3.0 ms |
| Input current: | typ. 5 mA |
| Current consumption K-bus: | typ. 8 mA |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Bit width in the process image: | 4 inputs |
| Configuration: | no address or configuration setting |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
