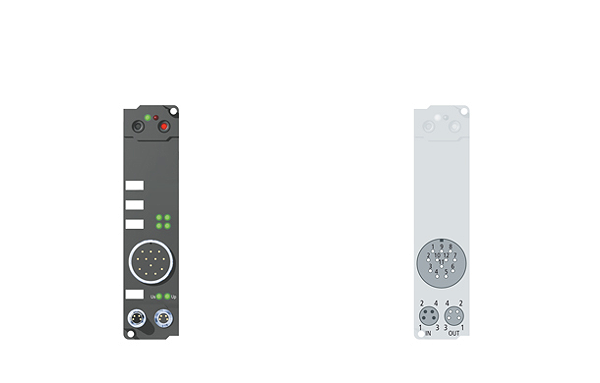

Beckhoff IE5009
IE5009 | 1-channel SSI encoder interface
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The IE5009 SSI interface module allows an SSI encoder to be connected directly. The encoder is powered via the SSI interface. The interface circuit generates a pulse for reading the encoder and makes the incoming data stream available to the controller as a data word in the process image. The module can optionally provide the data as binary numbers or as a binary gray code. Various operating modes, transmission frequencies and bit widths can be permanently stored in a control register.
Technical parameters
| Number of channels: | 1 |
| SSI encoder connection: | M23 connector with outer thread, 12-pin |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Signal input: | difference signal (RS485) |
| Encoder supply: | 24 V DC, from load voltage |
| Data transfer rates: | variable up to 1 MHz, 250 kHz default |
| Serial input: | 24 bits (adjustable) |
| Data direction: | read |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Current consumption from US (without sensor current): | 55 mA |
| Bit width in the process image: | input: 1 x 32 bit data (1 x 8 bit control/status optional) |
| Electrical isolation: | yes, via IP-Link |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals: | CE, UL |
