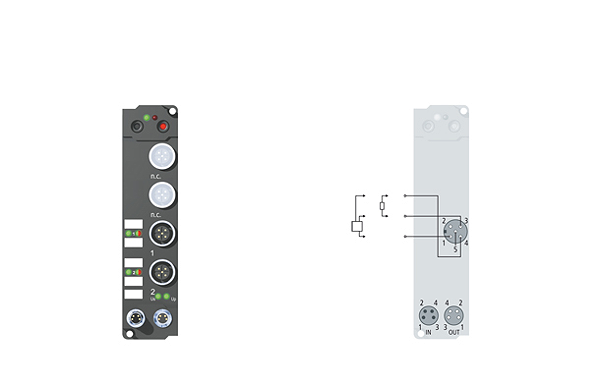

Beckhoff IE2512
IE2512 | 2-channel pulse width output 24 V DC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The outputs of the IE2512 module provide a pulse width modulated version of a binary signal. The keying ratio is prescribed by a 16 bit value from the automation unit. The output is protected against overload and short circuit. In addition to the PWM operating mode, the outputs can also be frequency modulated or used to control stepper motors with specified pulses and direction. The module contains two channels that indicate their state by means of light emitting diodes. The LEDs are driven in time with the outputs and show the keying ratio by their brightness.
Technical parameters
| Number of outputs: | 2 |
| Output connections: | M12, screw type |
| Load type: | ohmic, inductive |
| Nominal output voltage: | 24 V DC (-15 %/+20 %) |
| Max. output current: | 2.5 A per channel, individually short-circuit-proof |
| Current consumption from US (without sensor current): | 25 mA |
| Up/down channel: | 24 V DC, 0.5 A, short-circuit-proof |
| Base frequency: | 8 Hz…40 kHz, default: 250 Hz |
| Duty factor: | 0…100 % (TON > 750 ns, TOFF > 500 ns) |
| Resolution: | max. 10 bit |
| Freewheeling diode (output): | yes |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Bit width in the process image: | 48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status |
| Electrical isolation: | channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals: | CE, UL |
