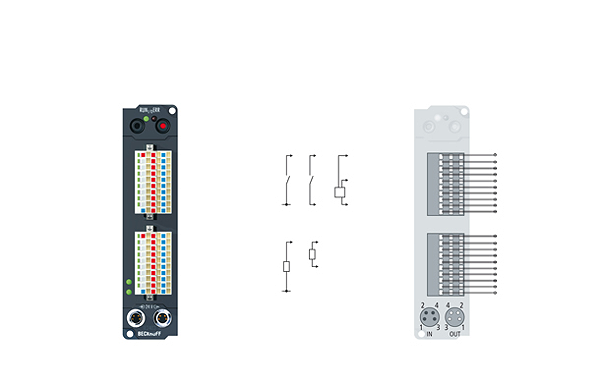

Beckhoff IE2403
IE2403 | 16-channel digital combi input/output 24 V DC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The digital IE2403 I/O module has sixteen channels with eight inputs and eight outputs. The device can therefore be flexibly adapted to the requirements of the application. The outputs handle load currents of up to 0.5 A, are short-circuit proof and protected against inverse polarity. For the signal connection connectors with a spring-loaded system are used, optionally available with 1 or 3 pins. The module is supplied without connectors.
Technical parameters
| Number of channels: | 16 channels (8 inputs and 8 outputs) |
| Input/output connections: | connector with spring-loaded system |
| Input filter: | 3.0 ms |
| “0” signal voltage: | -3…+5 V |
| “1” signal voltage: | 11…30 V, 6 mA input current (EN 61131-2, type 2) |
| Sensor supply: | from control voltage, max. 0.5 A, short-circuit proof in total |
| Load type: | ohmic, inductive, lamp load |
| Rated load voltage: | 24 V DC (-15 %/+20 %) |
| Max. output current: | max. 0.5 A per channel, individually short-circuit proof |
| Short-circuit current: | typ. 1.5 A |
| Auxiliary power current: | typ. 20 mA per channel |
| Current consumption from US (without sensor current): | 25 mA |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Bit width in the process image: | 8 inputs + 8 outputs |
| Electrical isolation: | channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
