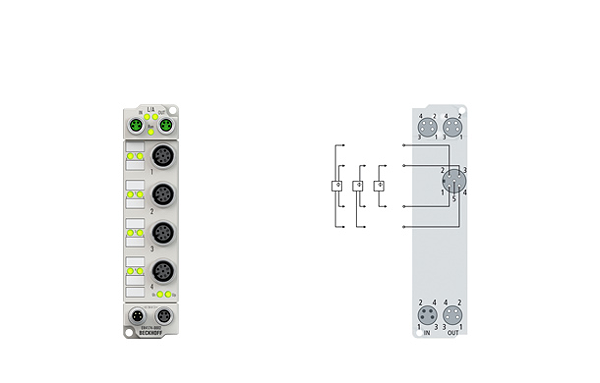

Image copyright: Beckhoff
Beckhoff ER4174-0002
ER4174-0002 | 4-channel analog output ±10 V or 0/4…20 mA, parameterisable, 16 bit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The ER4174 EtherCAT Box has four analog outputs which can be individually parameterised, so that they generate signals either in the -10…+10 V or the 0/4…20 mA range. The voltage or output current is supplied to the process level with a resolution of 15 bit (default), and is electrically isolated. The output scaling can be changed if required.
Technical parameters
| Number of channels: | 4 analog outputs |
| Number of outputs: | 4 |
| Output connections: | M12, screw type |
| Protocol: | EtherCAT |
| Bus interface: | 2 x M8 socket, shielded, screw type |
| Signal type: | -10/0…+10 V | 0/4…20 mA |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Load: | > 5 kΩ | < 500 Ω |
| Resolution: | 16 bit |
| Conversion time: | ~ 40 µs |
| Measuring error: | < 0.1 % (relative to full scale value) |
| Actuator supply: | from the auxiliary voltage UP |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Bit width in the process image: | 4 x 16 bit AO output |
| Electrical isolation: | 500 V |
| Current consumption from US: | 120 mA |
| Special features: | current or voltage parameterisable per channel |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings: | CE, UL |
