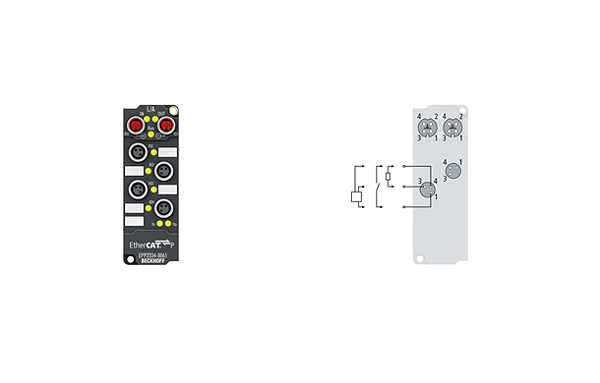

Beckhoff EPP2334-0061
EPP2334-0061 | 4-channel digital input or output, 24 V DC, M8, I, max. 0.5 A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EPP2334-0061 EtherCAT P Box has four digital channels, each of which can optionally be operated as an input or as an output. A configuration for using a channel as input or output is not necessary; the input circuit is internally connected to the output driver, so that a set output is displayed automatically in the input process image.
Technical parameters
| Specification: | EN 61131-2, type 1/3 |
| Number of channels: | 4 digital inputs or outputs |
| Input/output connections: | M8, screw type |
| Protocol: | EtherCAT |
| Bus interface: | 2 x M8 socket, shielded, screw type, EtherCAT-P-coded |
| Input filter: | 10 µs |
| “0” signal voltage: | -3…+5 V |
| “1” signal voltage: | 11…30 V, 6 mA input current (EN 61131-2, type 3) |
| Sensor supply: | from load supply voltage, max. 0.5 A, short-circuit proof in total |
| Load type: | ohmic, inductive, lamp load |
| Rated load voltage: | 24 V DC (-15 %/+20 %) |
| Max. output current: | 0.5 A per channel, individually short-circuit proof |
| Short-circuit current: | typ. 1.5 A |
| Auxiliary power current: | typ. 20 mA |
| Power supply connection: | not necessary |
| Bit width in the process image: | 4 inputs + 4 outputs |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings: | CE, UL |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
