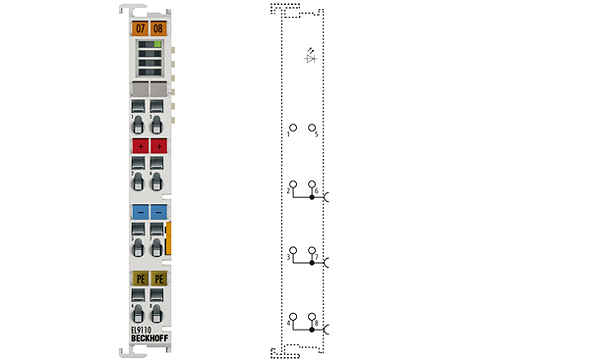

Beckhoff EL9110
EL9110 | Potential supply terminal, 24 V DC, with diagnostics
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL9110 power feed terminal makes it possible to set up various potential groups with the standard voltage of 24 V DC. In order to monitor the supply voltage, the terminal with diagnostics function report the status of the power feed terminal to the EtherCAT Coupler through two input bits. It is thus possible for the controller to check the distributed peripheral voltage over the fieldbus.
Technical parameters
| Technology: | potential supply terminal with diagnostics |
| Current load: | ≤ 10 A |
| Power LED: | green |
| Defect LED: | – |
| Current consumption E-bus: | typ. 90 mA |
| Nominal voltage: | 24 V DC |
| Integrated fine-wire fuse: | – |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Diagnostics in the process image: | yes |
| Reported to E-bus: | yes |
| PE contact: | yes |
| Shield connection: | – |
| Bit width in the process image: | 2 |
| Electrical connection to DIN rail: | – |
| Housing width: | 12 mm |
| Weight: | approx. 50 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/markings: | CE, UL, ATEX |
| Ex marking: | II 3 G Ex nA IIC T4 Gc |
