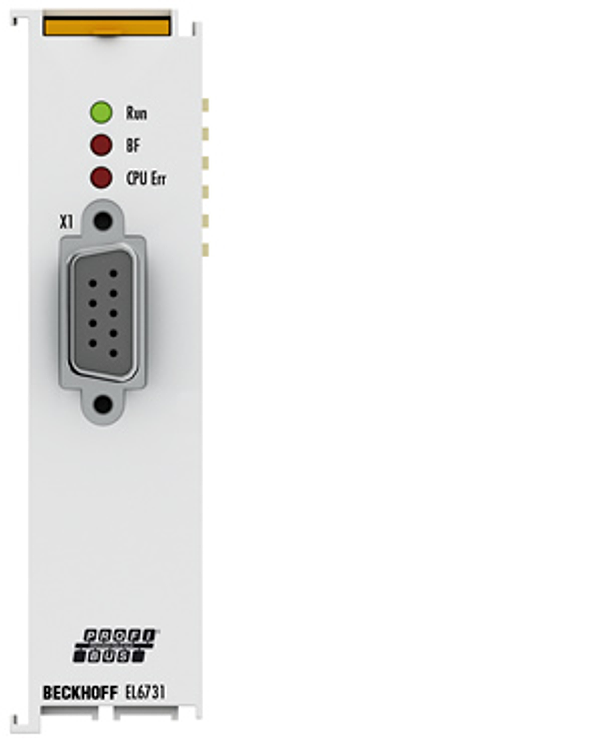

Beckhoff EL6731
EL6731 | PROFIBUS master/slave terminal
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The PROFIBUS master terminal EL6731 supports the PROFIBUS protocol with all its features. Within an EtherCAT Terminal network, it enables the integration of any PROFIBUS devices. Thanks to the PROFIBUS chip developed in-house, the terminal is equipped with the latest version of the PROFIBUS technology – including high-precision isochronous mode for axis control and expanded diagnostic options. These masters are the only ones that support different poll rates for the slaves. Features:
Technical parameters
| Technology: | PROFIBUS master terminal |
| Cycle time: | differing DP cycle times per slave are possible using the CDL concept |
| Fieldbus: | PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), DP-V2, PROFIBUS MC (equidistant) |
| Number of fieldbus channels: | 1 |
| Data transfer rates: | 9.6 kbaud…12 Mbaud |
| Interfaces: | 1 x D-sub socket, 9-pin, galvanically decoupled |
| Bus device: | max. 125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slave |
| Hardware diagnosis: | status LEDs |
| Distributed clocks: | yes |
| Bit width in the process image: | total max.: 1.4 kbyte input and 1.4 kbyte output data |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 350 mA |
| Weight: | approx. 70 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
