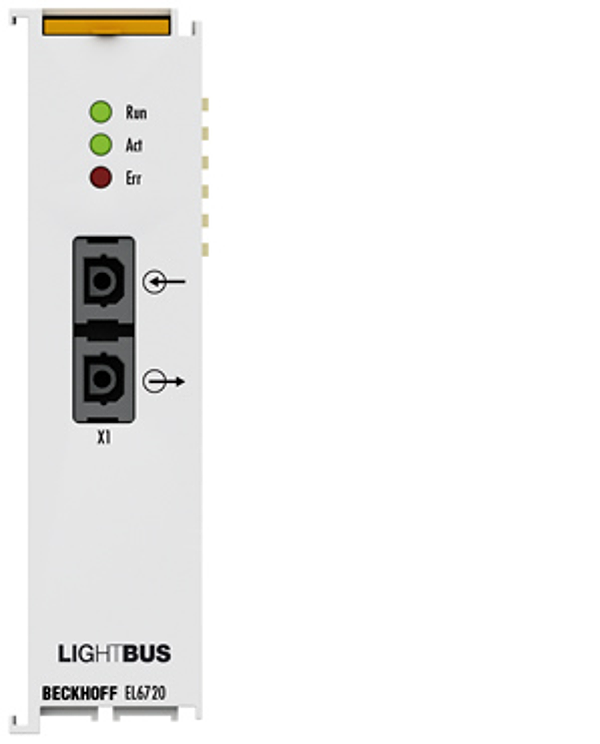

Beckhoff EL6720
EL6720 | Lightbus master terminal
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The EL6720 Lightbus master terminal enables the connection to Lightbus devices. The terminal supports the Lightbus protocol with all its features. Within an EtherCAT Terminal network, the EL6720 enables the integration of any Lightbus slaves. The terminal has a powerful protocol implementation with many features:
Technical parameters
| Technology: | Lightbus master terminal |
| Fieldbus: | Lightbus |
| Number of fieldbus channels: | 1 |
| Data transfer rates: | 2.5 Mbaud |
| Interfaces: | 2 x fibre optic standard connector Z1000 (plastic fibre), Z1010 (HCS fibre) |
| Communication: | 3 priority controlled logical communication channels |
| Bus device: | max. 254 nodes with a max. of 65,280 I/O points per fieldbus connection |
| Hardware diagnosis: | 3 LEDs |
| Distributed clocks: | – |
| Type of connection: | fibre optic standard connector |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 240 mA |
| Special features: | 3 priority-controlled logical communication channels |
| Weight: | approx. 70 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE, UL, Ex |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
